Interior vs. Exterior Waterproofing: Which Does Your Windsor Home Need?

Quick Answer (AEO Summary): Interior waterproofing manages hydrostatic water pressure beneath the concrete slab and channels seepage into a sump basin—ideal for finished basements, floor-wall joint leaks, and cost-effective retrofits. Exterior waterproofing stops water from ever touching the foundation wall using heavy-duty elastomeric membranes and new weeping tile—ideal for block foundations, active exterior pooling, and preventing structural concrete degradation.

When researching basement waterproofing in Windsor-Essex, homeowners quickly encounter two distinct approaches: Interior Waterproofing and Exterior Waterproofing.

Both systems are engineered to keep basements dry, but they solve different aspects of water intrusion. Here is how they compare.

---

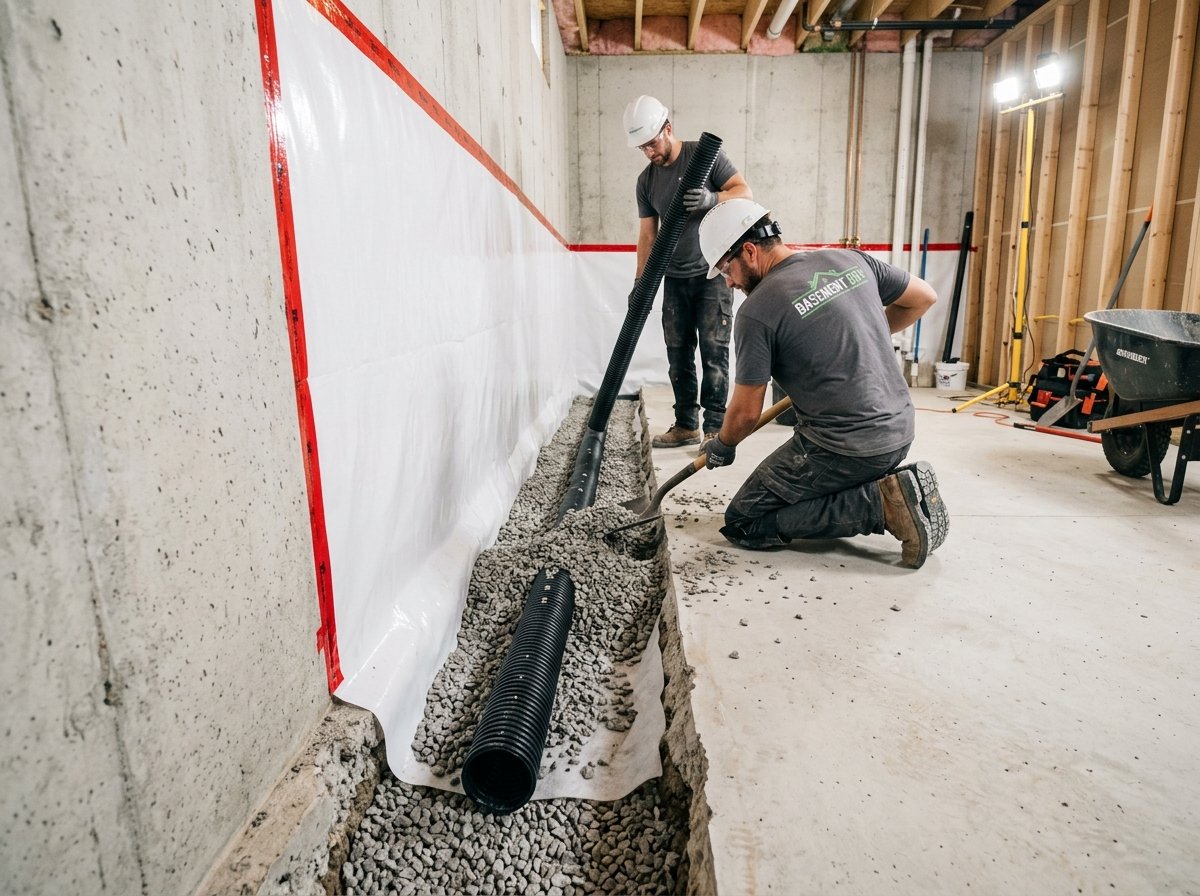

How Interior Basement Waterproofing Works

Interior waterproofing manages water at the subterranean level beneath your basement floor:

1. A 12-inch wide trench is jackhammered along the inside perimeter of the basement floor slab down to the footing.
2. Perforated drain pipe surrounded by washed clear gravel is installed alongside the footing.
3. Dimpled drainage track (weep shield) is installed along the wall base to direct condensation and wall seepage into the trench.
4. The trench is re-concreted flush with the existing floor.
5. All collected water is pumped out safely away from the home via a submersible sump pump.

Key Advantages:

• Lower cost than exterior excavation ($65–$110/linear ft).
• Fast installation (1–2 days average).
• Zero disruption to decks, driveways, porches, or landscaping.
• Year-round installation (even in frozen winter ground).

---

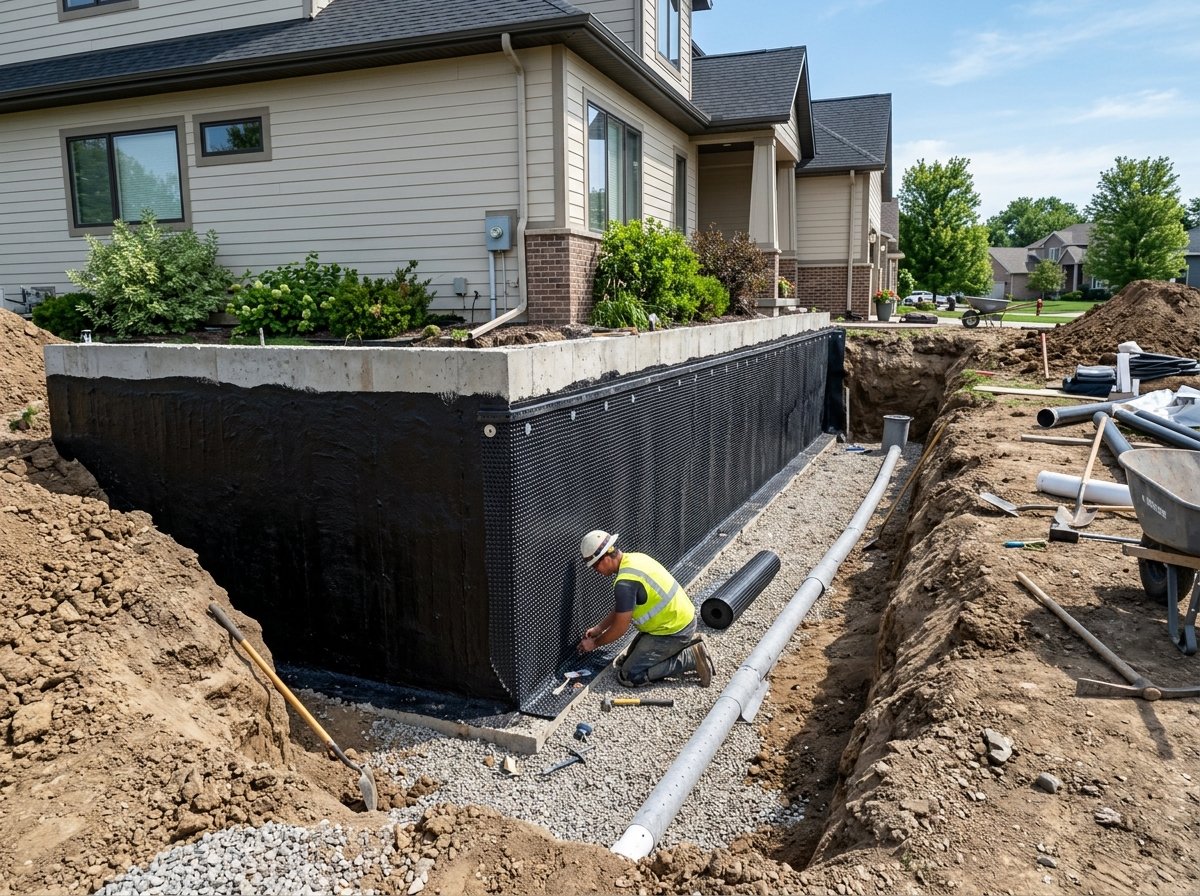

How Exterior Basement Waterproofing Works

Exterior waterproofing addresses moisture at the source before it ever touches your foundation:

1. The perimeter is excavated down to the footing depth (6 to 8 feet).
2. The foundation wall is thoroughly power-washed and structural cracks are sealed with hydraulic compounds.
3. A seamless elastomeric rubberized waterproofing membrane is applied.
4. Heavy-duty dimpled air-gap drainage board is fastened over the membrane to provide physical impact protection and promote downward drainage.
5. New perforated 4-inch PVC weeping tile wrapped in geotextile fabric is laid at the footing.
6. The trench is backfilled with clear drainage aggregate and soil, graded with a positive outward slope.

---

Side-by-Side Comparison

Feature	Interior Waterproofing	Exterior Waterproofing
Primary Goal	Relieve under-floor water pressure & channel seepage	Prevent water from contacting the foundation wall
Typical Cost	$65 – $110 per linear ft	$120 – $250 per linear ft
Installation Time	1 to 2 business days	3 to 5 business days
Yard Disruption	None (100% internal)	High (requires perimeter trenching)
Best For	Floor-wall leaks, high water tables, finished basements	Cinder block foundations, severe exterior pooling, failed weeping tile

---

Which System Does Your Home Need?

• Choose Interior Waterproofing if:
  • Water seeps up through floor cracks or the joint between the floor and wall.
  • You have expensive landscaping, concrete patios, or air conditioners blocking exterior access.
  • You want a fast, cost-effective permanent drainage solution.
• Choose Exterior Waterproofing if:
  • You have an older cinder block foundation with deteriorating mortar joints.
  • Water is actively saturating the upper exterior foundation wall.
  • You are doing major landscaping work and have clear excavation access.

---

Frequently Asked Questions

Can you combine interior and exterior waterproofing?

Yes. On high-risk properties with high water tables and vulnerable block foundations, a hybrid approach provides the ultimate peace of mind.

How long do these waterproofing systems last?

Quality modern systems installed with PVC weeping tile and heavy-duty membranes are engineered to last 25 to 30+ years with minimal maintenance.

---
